How to Pair Your Blinds Motor Easily

How To Pair

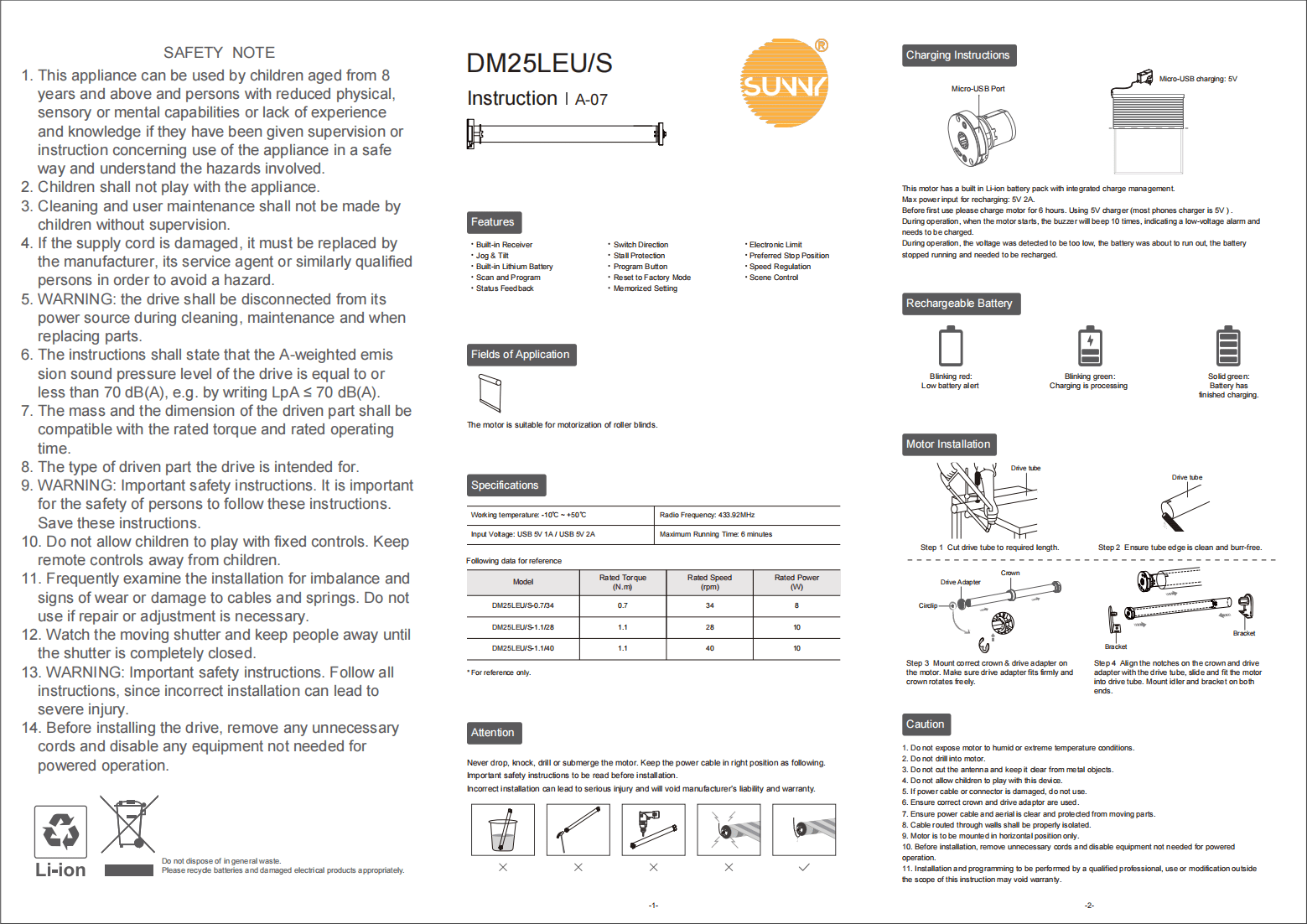

Setting Notice

Don’t operate motors when the alarm is low voltage.
Operating ：
• The valid interval of the emitter button is 10S, the emitter will quit the set after 10S.
• The motor will run or beep for the hint, please do the next step after the hint.
Set the limit position ：
• After the upper / lower limit setting and the upper/lower limit position can’t be in the same position.
• After the limit setting, with power off and memory function.
• Limit delete will clear all limited memory.
• It will exit the limit set when the program there is not operating for 2 minutes.
If the emitter is lost, please set it up again with the new emitter.
One motor can store a maximum of 10 channels; after fully storing, if pair new channels, only the last one will be covered circularly.

*Dial lithium battery switch, 0 is off switch, 1 is turn on the switch.

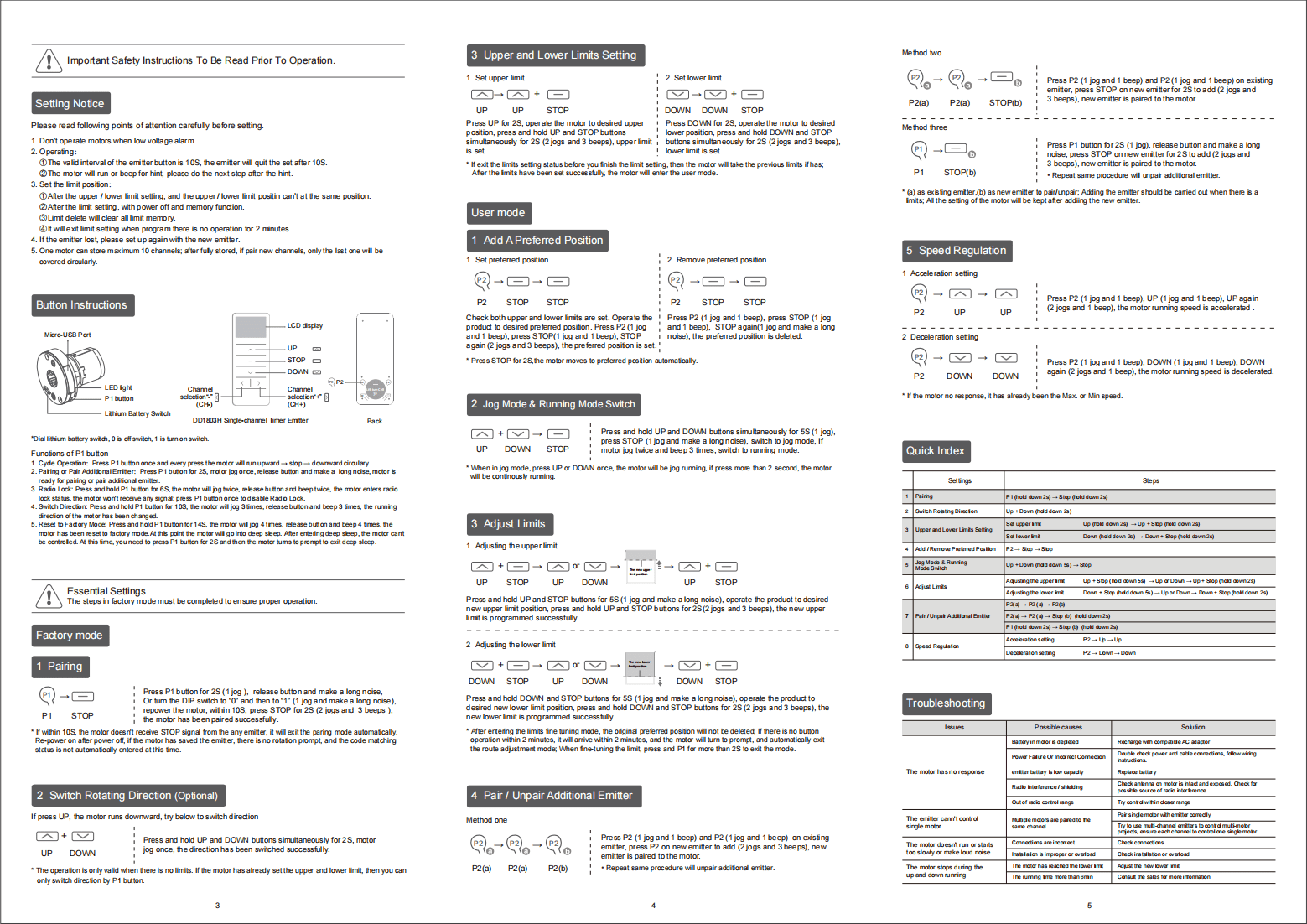

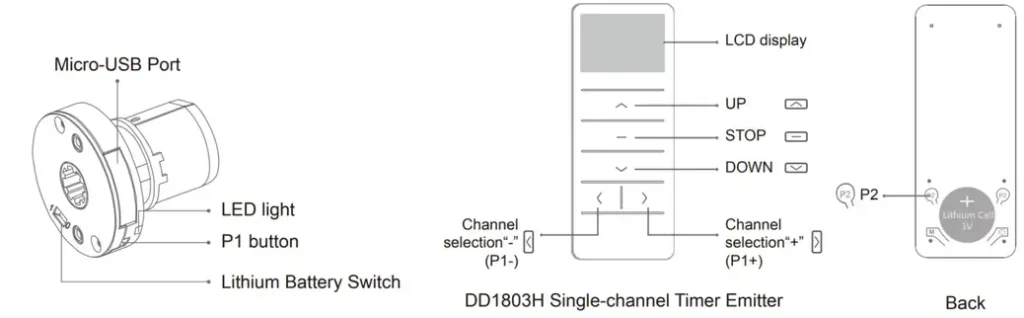

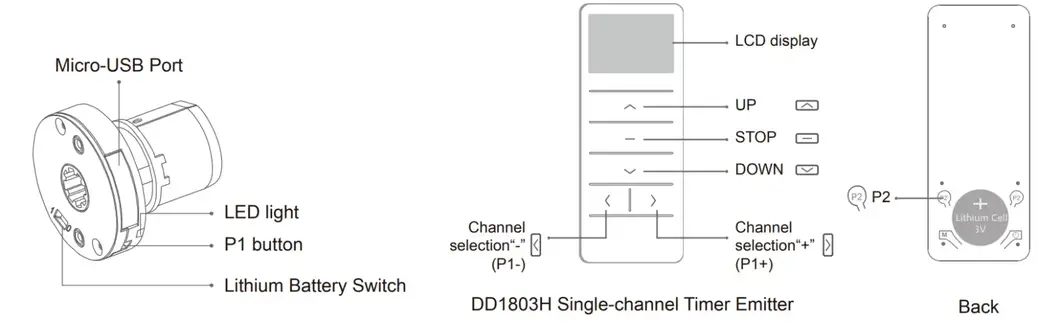

Functions of the P1 button

Cycle Operation： Press the P1 button once and with every press, the motor will run upward → and stop → downward circular.
Pairing or Pair Additional Emitter： Press the P1 button for 2S, motor jog once, release the button and make a long noise, motor is ready for pairing or pair additional emitter.
Radio Lock: Press and hold the P1 button for 6S, the motor will jog twice, release the button, and beep twice, the motor enters radio lock status, but the motor won’t receive any signal; press the P1 button once to disable Radio Lock.
Switch Direction: Press and hold the P1 button for 10S, the motor will jog 3 times, release the button, and beep 3 times, the running direction of the motor has been changed.
Reset to Factory Mode: Press and hold the P1 button for 14S, the motor will jog 4 times, release the button and beep 4 times, the motor has been reset to factory mode. At this point, the motor will go into a deep sleep. After entering deep sleep, the motor can’t be controlled. At this time, you need to press the P1 button for 2S and then the motor turns to prompt you to exit deep sleep.

1. Pairing

Press the P1 button for 2S (1 jog ), release the button and make a long nose, Or turn the DIP switch to “0” and then to “1” (1 jog and make a long nose), repower the motor, within 10S, press STOP for 2S (2 jogs and 3 beeps ), the motor has been paired successfully.

If within 10S, the motor doesn’t receive a STOP signal from any emitter, it will exit the pairing mode automatically.
Re-power on after power off, if the motor has saved the emitter, there is no rotation prompt, and the code matching status is not automatically entered at this time.

2. Switch Rotating Direction (Optional)

If press UP, the motor runs downward, try below to switch direction,

Press and hold UP and DOWN buttons simultaneously for 2S, motor jog once, and the direction has been switched successfully.

*The operation is only valid when there are no limits. If the motor has already set the upper and lower limit, then you can only switch directions by the P1 button.

3. Upper and Lower Limits Setting

• Set upper limit:

Press UP for 2S, operate the motor to the desired upper position, press and hold UP and STOP buttons simultaneously for 2S (2 jogs and 3 beeps), and the upper limit is set.

• Set lower limit:

Press DOWN for 2S, operate the motor to desired lower position, press and hold DOWN and STOP buttons simultaneously for 2S (2 jogs and 3 beeps), and the lower limit is set.

User mode

1. Add A Preferred Position

• Set preferred position

Check both upper and lower limits are set. Operate the product to the desired preferred position. Press P2 (1 jog and 1 beep), press STOP(1 jog and 1 beep), STOP again (2 jogs and 3 beeps), and the preferred position is set.

• Remove preferred position

Press P2 (1 jog and 1 beep), press STOP (1 jog and 1 beep), STOP again(1 jog and make a long nose), and the preferred position is deleted.

*Press STOP for 2S, and the motor moves to the preferred position automatically.

2. Jog Mode & Running Mode Switch

Press and hold UP and DOWN buttons simultaneously for 5S (1 jog), press STOP (1 jog and make a long nose), and switch to jog mode, If the motor jog twice and beeps 3 times, switch to running mode.

*when in jog mode, press UP or DOWN once, and the motor will be jog running, if pressed for more than 2 seconds, the motor will be continuously running.

3. Adjust Limits

• Adjusting the upper limit

Press and hold UP and STOP buttons for 5S (1 jog and make a long nose), operate the product to desired new upper limit position, press and hold UP and STOP buttons for 2S(2 jogs and 3 beeps), and the new upper limit is programmed successfully.

• Adjusting the lower limit

Press and hold DOWN and STOP buttons for 5S (1 jog and make a long nose), operate the product to the desired new lower limit position, press and hold DOWN and STOP buttons for 2S (2 jogs and 3 beeps), and the new lower limit is programmed successfully.

*After entering the limits fine-tuning mode, the original preferred position will not be deleted; If there is no button operation within 2 minutes, it will arrive within 2 minutes, and the motor will turn to prompt, and automatically exit the route adjustment mode; When fine-tuning the limit, press, and P1 for more than 2S to exit the mode.

4. Pair / Unpair Additional Emitter

Method one

Press P2 (1 jog and 1 beep) and P2 (1 jog and 1 beep) on the existing emitter, press P2 on the new emitter to add (2 jogs and 3 beeps), and the new emitter is paired to the motor.
Repeat same procedure will unpair additional emitter.

Method two

Press P2 (1 jog and 1 beep) and P2 (1 jog and 1 beep and 1 beep) on the existing emitter, press STOP on the new emitter for 2S to add (2 jogs and 3 beeps), the new emitter is paired to the motor.
Press the P1 button for 2S (1 jog), release the button and make a long noise, press STOP on the new emitter for 2S to add (2 jogs and 3 beeps), and the new emitter is paired to the motor.
Repeat same procedure will unpair additional emitter.

*(a) as existing emitter,(b) as new emitter to pair/unpair; Adding the emitter should be carried out when there is a limit;
All the settings of the motor will be kept after adding the new emitter.

5. Speed Regulation

Acceleration setting:

Press P2 (1 jog and 1 beep), UP (1 jog and 1 beep), UP again (2 jogs and 1 beep), and the motor running speed is accelerated.
Press P2 (1 jog and 1 beep), DOWN (1 jog and 1 beep), DOWN again (2 jogs and 1 beep), and the motor running speed is decelerated.

*If the motor has no response, it has already been the Max. or Min speed.

Quick Index

Pairing: P1 (hold down 2s) → Stop (hold down 2s)
Switch Rotating Direction: Up + Down (hold down 2s)
Upper and Lower Limits Setting:
Set upper limit: Up (hold down 2s) → Up + Stop (hold down 2s)
Set lower limit: Down (hold down 2s) → Down + Stop (hold down 2s)
Add / Remove Preferred Position: P2 → Stop → Stop
Jog Mode & Running Mode Switch:
Up + Down (hold down 5s) → Stop
Adjust Limits:
Adjusting the upper limit: Up + Stop (hold down 5s) → Up or Down → Up + Stop (hold down 2s)
Adjusting the lower limit: Down + Stop (hold down 5s) → Up or Down → Down + Stop (hold down 2s)
Pair / Unpair Additional Emitter:
P2(a) → P2 (a) → P2(b)
P2(a) → P2 (a) → Stop (b) (hold down 2s)
P1 (hold down 2s) → Stop (b) (hold down 2s)
Speed Regulation:
Acceleration setting: P2 → Up → Up
Deceleration setting: P2 → Down → Down
